| GENERAL PRODUCT INFORMATION |
| Dispensing Type |
1.Intermissire - Single
2.Continuative - Multiple |
Interface |
Pulse, RS232, Hopper |
| Humidity |
30% to 90%
[non-condensation]
|
Acceptance Speed |
Approx. 1 sec. |
| Power Sources |
12V DC±5%
0.2A<Standby>
2.5A<Peak> |
Power consumption |
Max 10 watts |
| Features |
★1 : Sending error message.
★2 : Detecting motor's performance. |
| Weight |
Approx. 1.8/2.4kg |
| DOWNLOADABLE MANUALS, DOCUMENTS AND TOOLS |
| Manual |
View the PDF file, ND-501G module Configration manual |

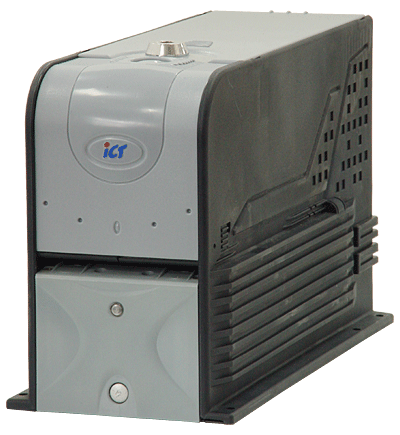

| PRODUCT LAYOUT |
|
