| GENERAL PRODUCT INFORMATION |
| Applicable Cards |
CVD-300 Series ........ Approx. 300 cards
CVD-1000 Series .... Approx. 1000 cards
[ cards in 0.20mm thickness] |
| Cards Capacity |
Material : Polyester Film Card
Width : 53 ~ 58 ± 0.5mm
Length : 76 ~ 90 ± 0.5mm
Thickness : 0.2mm [min] ~ 1.0mm[max] |
| Power consumption |
DC 12V : 450mA [standby] / 2.4A [peak]
DC 24V : 300mA [standby] / 1.6A [peak] |
| Power Sources |
DC 12V ± 5%
DC 24V ± 5% |
Interface logic |
Pulse, RS232, Hopper |
Card Dispensing Time
|
Approx. 1 seconds.
|
Operating Temperature
|
-10° C ~ +40° C |
| Humidity |
30% to 90%
[non-condensation] |
Weight |
CVD-300 .... Approx. 1.9Kg
CVD-1000 .. Approx. 3.2Kg |
| Dispensing Way |
| Standard Type: |
CVD-300 & CVD-1000 [ E / EH / EL ] |
| |
Card will be held in slot when dispensing. |
| Drop Type: |
CVD-300 & CVD-1000 [ DE / DEL ] |
| |
Card will be dropped out from slot when dispensing. |
|
| Features |
1.Low level sensor function. (Optional)
2.Easy cards filling.
3.Pulse, Hopper and RS-232 interface available.
4.12V and 24V acceptable.
5.Card capacity available from 300 cards to 1000 cards.
6.Standard type and Drop type dispenser available. |
| DOWNLOADABLE MANUALS, DOCUMENTS AND TOOLS |
| Manual Download |
View the PDF file |

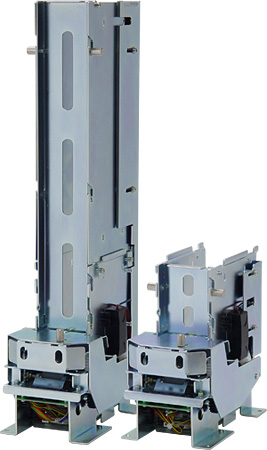

| PRODUCT LAYOUT |
|
